eDisplay

Where architecture meets digital innovation.

econiclay® TECHNOLOGY

A Digital Façade that "Breathes"

eDisplay is an intelligent interaction system that deeply integrates digital display technology with building materials. It can be embedded in walls, facades, commercial spaces, and public building surfaces, achieving the unity of content visualization and spatial interaction.
Where Architecture Meets Digital Intelligence

ADVANTAGE

eDisplay Core Values

Architectural Revolution

Seamless Material-Display Integration

Instantly turn stone, wood, or brick façades into 4K displays, invisible when off.

Invisible Design

Display units fully embedded in building materials, zero-exposed, replacing traditional LED screens.

Unlocking Commercial Value

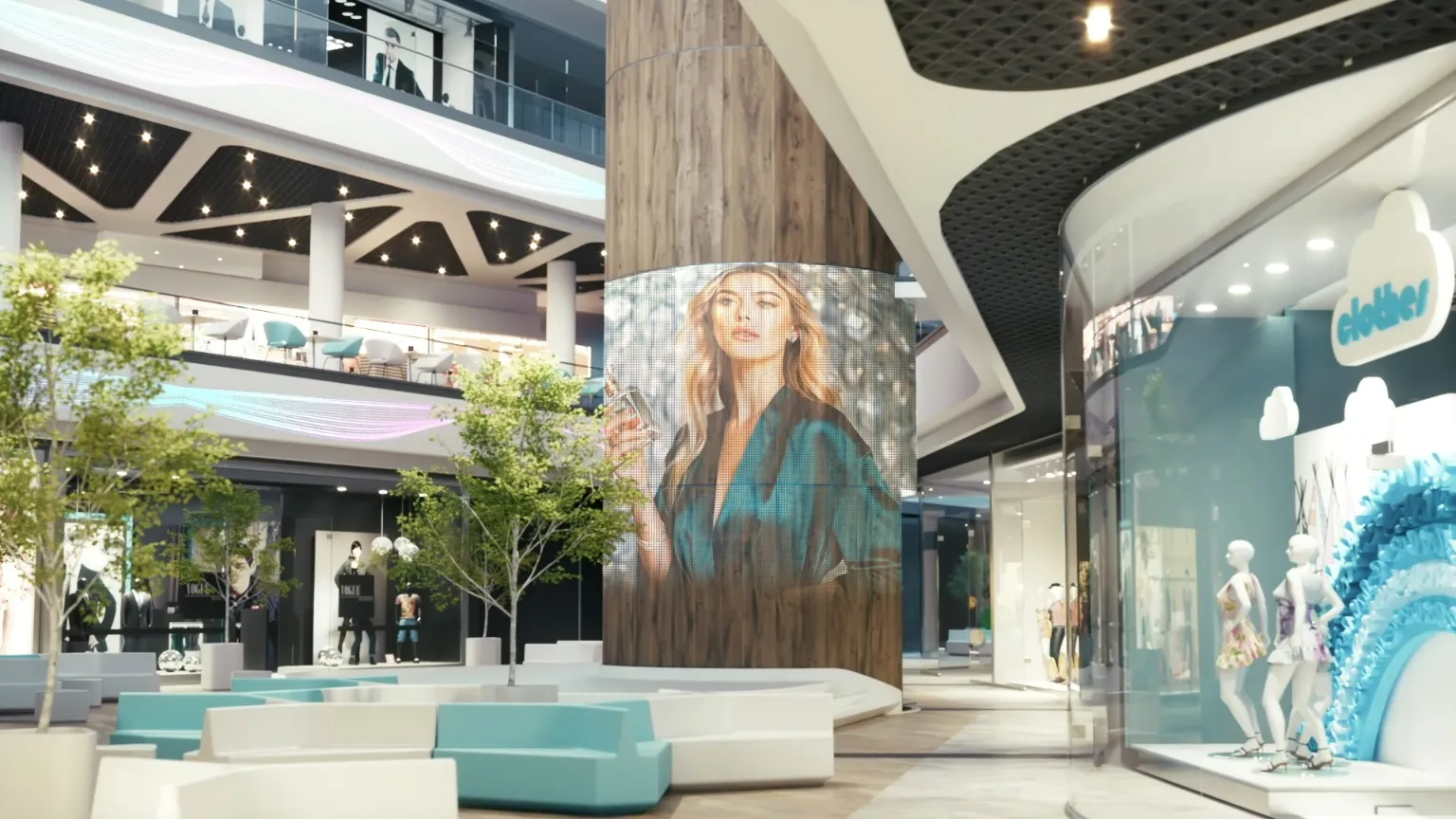

Indoor

Retail walls become immersive displays, supporting engaging customer experiences.

Outdoor

Façades become large-scale digital display surfaces, creating opportunities for communication and commercial value.

Solar-Storage-Display System

Paired with eBIPV Bluestone Curtain, enables solar-powered operation delivering integrated generation, storage, and display.

Texture selection

Explore eDisplay Texture Options

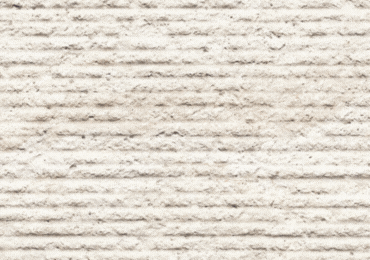

eDisplay Curtain Stone RidgedNew White Sesame

Specifications (mm): 960×320, 640×320, 1600×480
eDisplay: 10 pieces (red zone)
eCovering: 4 pieces
Custom dimensions available
Customizable curved surfaces
Customizable color options

eDisplay Curtain Stone RidgedNew White Sesame

Specifications (mm): 960×320, 640×320, 1600×480
eDisplay: 10 pieces (red zone)
eCovering: 4 pieces
Custom dimensions available
Customizable curved surfaces
Customizable color options

eDisplay Curtain Stone RidgedNew White Sesame

Specifications (mm): 960×320, 640×320, 1600×480
eDisplay: 10 pieces (red zone)
eCovering: 4 pieces
Custom dimensions available
Customizable curved surfaces
Customizable color options

eDisplay Curtain Marble Sahara Noir

Specifications (mm): 960×320, 640×320, 1600×480
eDisplay: 10 pieces (red zone)
eCovering: 4 pieces
Custom dimensions available
Customizable curved surfaces
Customizable color options

eDisplay Curtain Marble Andes Gold

Specifications (mm): 960×320, 640×320, 1600×480
Custom dimensions available
Customizable curved surfaces
Customizable color options

eDisplay Curtain Marble Andes Light Brown

Specifications (mm): 960×320, 640×320, 1600×480
Custom dimensions available
Customizable curved surfaces
Customizable color options

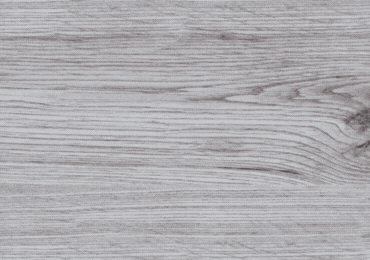

eDisplay Curtain Wood Caesious

Specifications (mm): 960×160, 640×160, 1600×480
Custom dimensions available
Customizable curved surfaces
Customizable color options

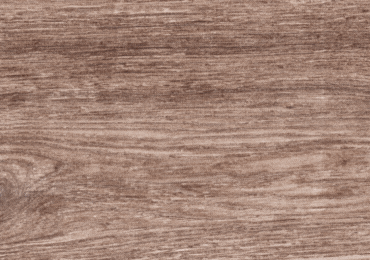

eDisplay Curtain Wood Light Brown

Specifications (mm): 960×160, 640×160, 1600×480
Custom dimensions available
Customizable curved surfaces
Customizable color options

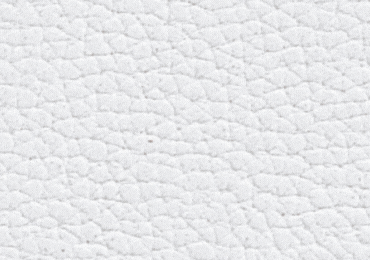

eDisplay Curtain Cowhide HB01

Specifications (mm): 640×160, 960×160, 960×320, 1280×640, 1920×640
Custom dimensions available
Customizable curved surfaces
Customizable color options

Application

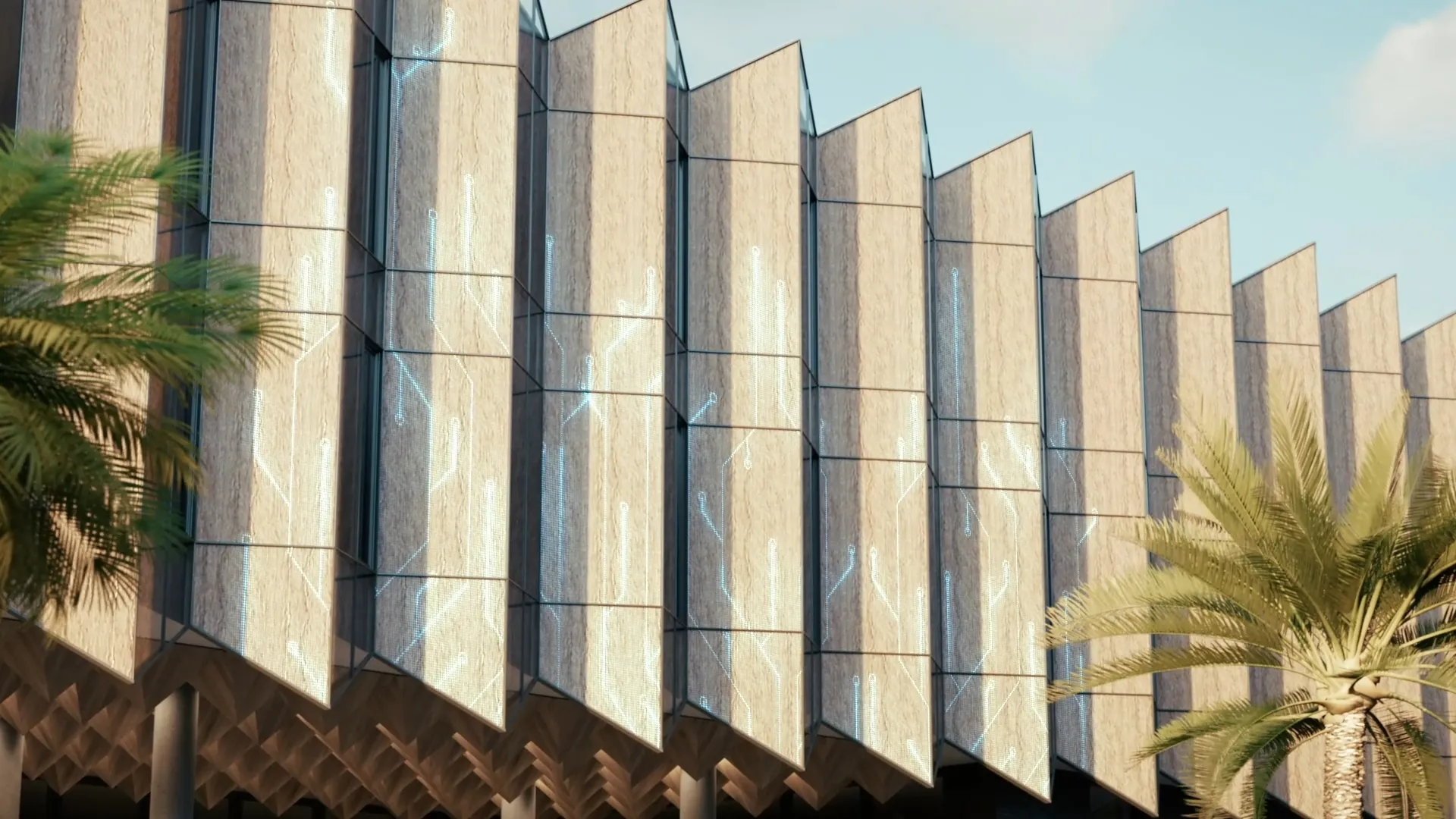

Building exterior walls

Transform building facades into dynamic digital surfaces, seamlessly integrating architectural aesthetics with high-definition visual communication.

Public Wall

Create interactive public spaces with intelligent display walls that enhance information sharing, cultural expression, and urban experiences.

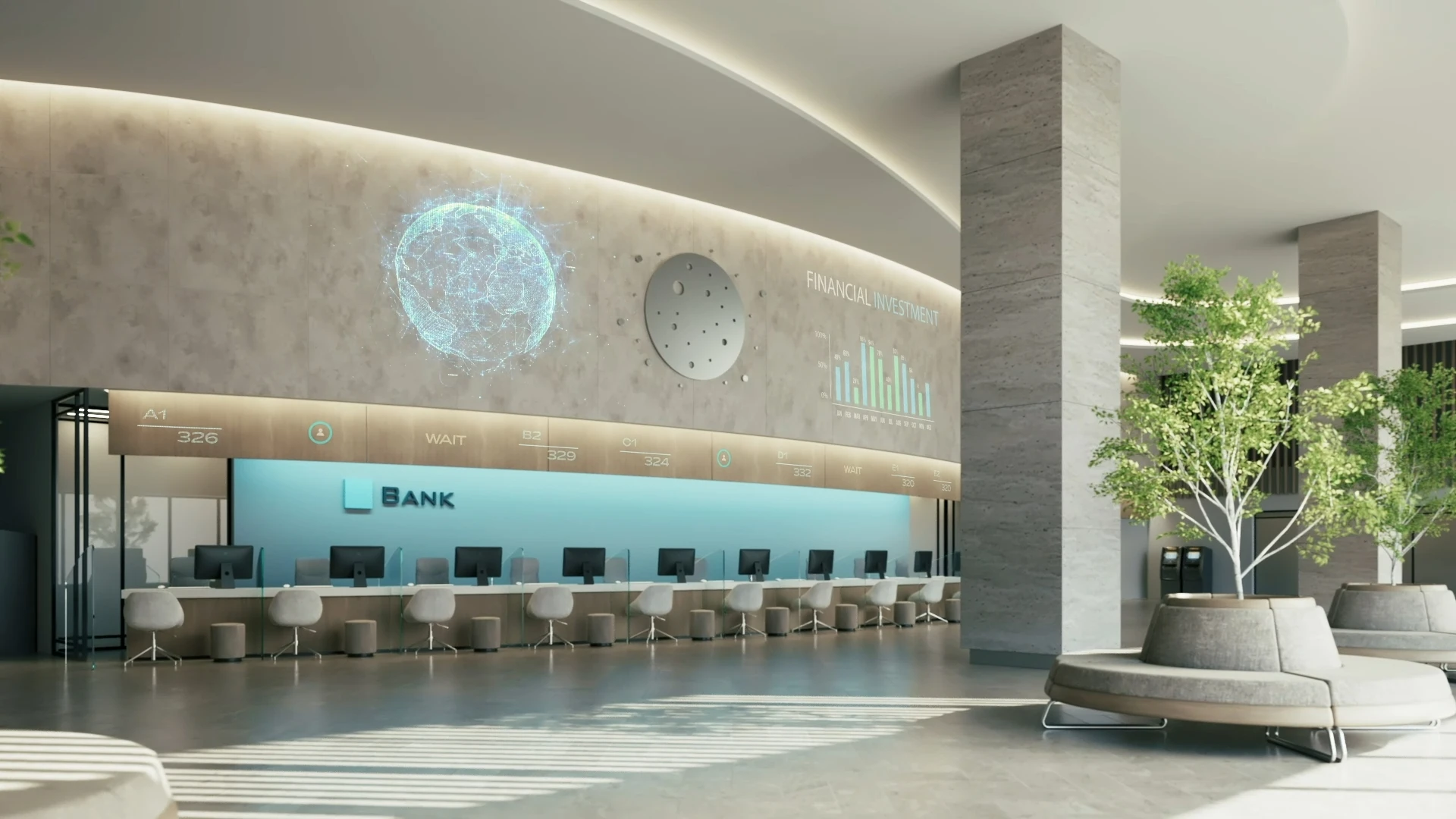

Commercial space

Combine architectural design and digital content to deliver immersive brand experiences and engaging customer interactions.

Shop

Turn storefronts and interior surfaces into eye-catching digital showcases that strengthen brand identity and attract customer attention.

Hotel

Enhance hospitality environments with elegant digital surfaces that blend information display, atmosphere creation, and personalized experiences.

Interior wall of the restaurant

Create unique dining environments through digital walls that combine artistic visuals, brand storytelling, and spatial ambiance.
Learn more

Technical specification

Technical Parameters
Indoor
Outdoor (Night Use Only)
Outdoor (Day & Night Use)
Module Size
640×320 / 960×320 / 1280×640 / 1280×480 mm
960×320 / 960×480 / 1280×640 / 1280×480 mm
640×320 mm
Module Thickness
50 mm
50 mm
50 mm
Resolution
P2.5
P4
P6.67
Pixel Density
160000 dots/m²
62500 dots/m²
22500 dots/m²
White Balance Brightness
≥800 cd/m² adjustable
1000–2000 cd/m²
4000–5000 cd/m²
White Balance Color Temperature
3000–15000K
3000–15000K
6500–8000K
Power Consumption
Peak ≤759W/m² / Average ~251W/m²
Peak ≤600W/m² / Average ≤200W/m²
Peak 520W/m² / Average 173W/m²
Refresh Rate
50–60 Hz
50–60 Hz
60 Hz

eDisplay Awards & Certifications

Winner of top awards at the 76th International Exhibition of Inventions Nuremberg: Gold Medal, Special Invention Award, ARCA Award, and Committee Award.

Indoor Solution

eCovering + eDisplay + eLighting

Interior surfaces combining decorative materials and invisible display technology. Walls and spaces become interactive when activated.

Outdoor Solution

Integrated architectural technology

Interactive digital architectural surfaces for exterior spaces.

Installation Guide

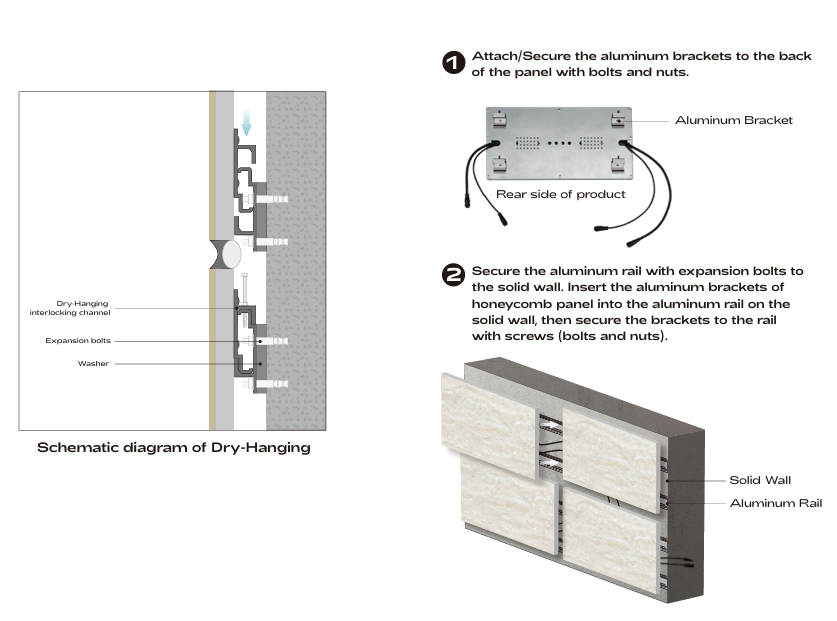

Dry-hanging installation

1. Measure the Wall — Mark the installation area and bracket positions. 2. Install Brackets — Secure brackets to support the eDisplay components. 3. Mount eDisplay Components — Align and fasten components. 4. Seal Joints — Apply suitable sealant or trims. 5. Connect Cables — Connect power and signal cables. 6. Test & Debug — Check the complete system.

Precautions

1. Safety First — Wear proper protective equipment and follow safety procedures during installation. 2. Accurate Measurement — Ensure precise measurements for alignment and fitting. 3. Choose the Right Installation Method — Select the appropriate method based on the installation environment and component specifications. 4. Secure Fixing — Ensure all components are firmly installed and regularly check the fixing condition.
